Innovative Coolblock BrickHeat-Insulating Brick Built-in EPS insulation blocks external heat and locks in coolness inside the building for sustainable energy savings.





Concrete Bricks Mixed with Thermal Insulating Foam Beads and Sandwiched with Thermal Insulating Foam Sheets
COOL BLOCK
Build a truly comfortable home with "Coolblock", the innovative brick with built-in thermal insulation.
Coolblock is a construction material made from Portland cement sandwiched with fire-retardant EPS (Expandable Polystyrene) insulation, manufactured using European production technology. With built-in thermal insulation, Coolblock stands out for effectively blocking heat from entering the building, certified by a thermal conductivity value of only 0.0829 W/m·K. It installs using standard masonry and plaster mortar without adding extra steps or complexity on site. Choosing Coolblock thermal insulation bricks is not just selecting wall bricks, but delivering long-term value for tangible comfort, a cooler building, and greater energy savings.
Product OptionsTest ResultsInstallation GuideView Specification Comparison Tablee-catalog
COOL BLOCK
Core-filled with EPS insulation; thermal conductivity of only 0.0829 W/m·K, making it difficult for heat to enter the home.
Rooms cool down quickly when the AC is turned on, saving over 30% on air conditioning energy compared to standard concrete blocks.
Water absorption of only 9.30%, preventing water suction from mortar, reducing cracked walls, mold, and peeling paint.
Lighter than standard concrete blocks; easy to cut, shape, and groove for conduits using standard tools.
No need for special mortar; requires no specialized labor or tools.

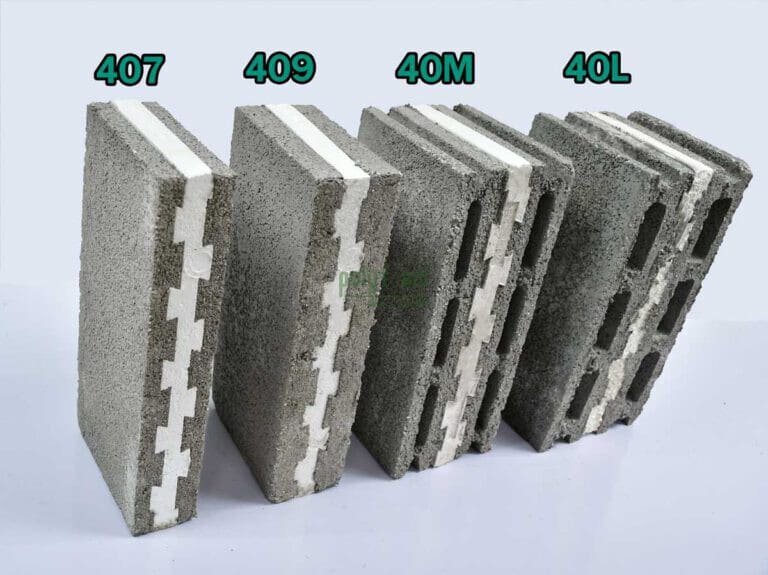

Product catalog

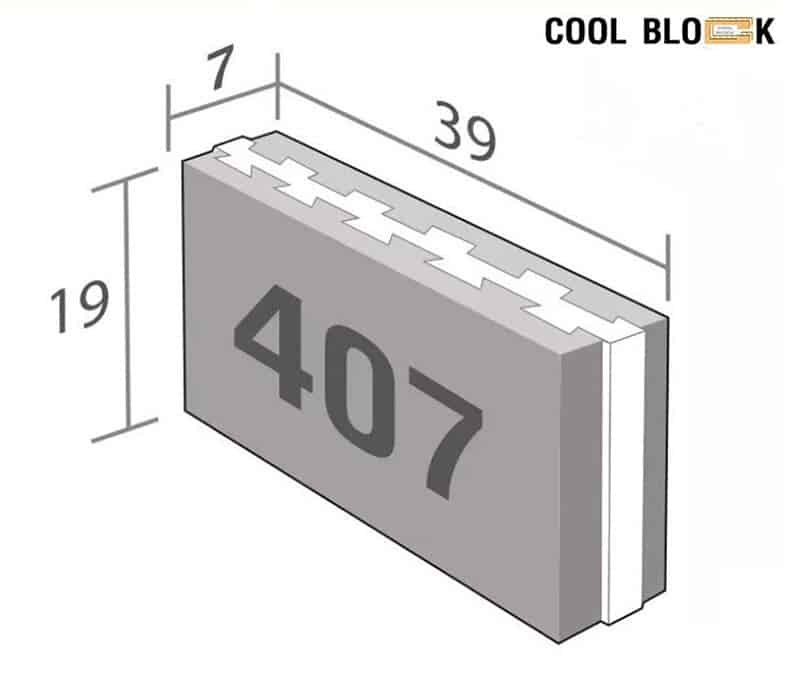

Coolblock Model 407
L 39 cm x W 7 cm x H 19 cm
Weight 4.8 kg/block
1 sq.m. = 12.5 blocks
Price 28 THB

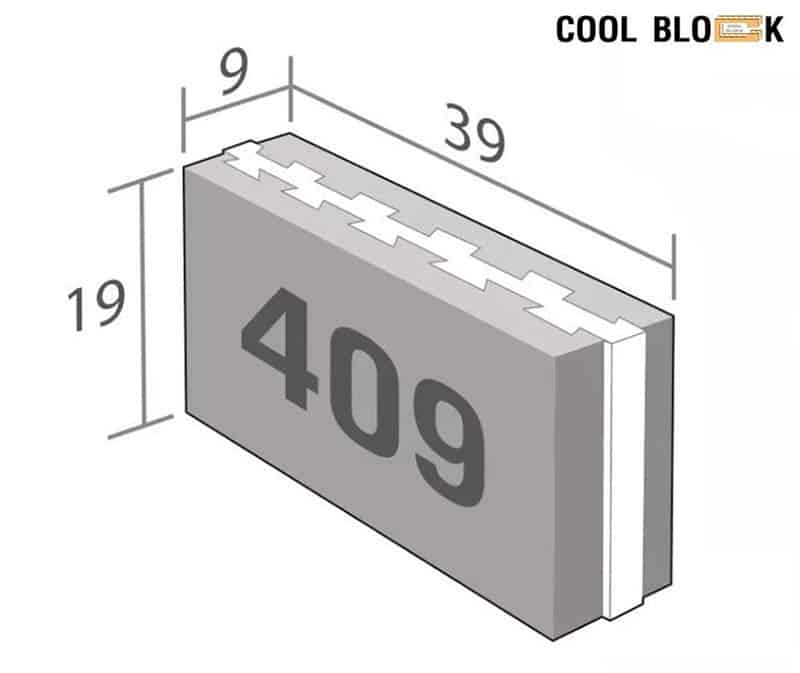

Coolblock Model 409
L 39 cm x W 9 cm x H 19 cm
Weight 6.2 kg/block
1 sq.m. = 12.5 blocks
Price 35 THB

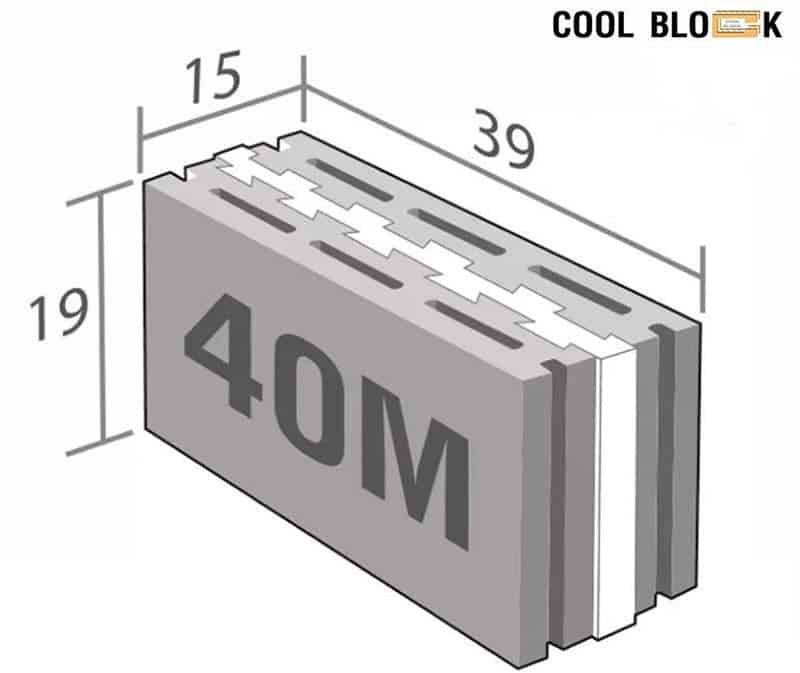

Coolblock Model 40M
L 39 cm x W 15 cm x H 19 cm
Weight 11.5 kg/block
1 sq.m. = 12.5 blocks
Price 52 THB

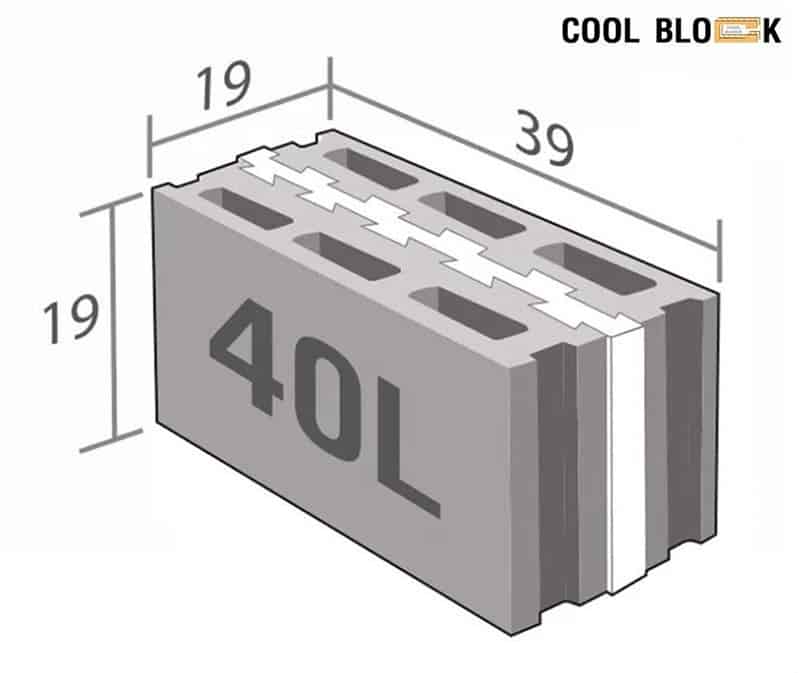

Coolblock Model 40L
L 39 cm x W 19 cm x H 19 cm
Weight 12.5 kg/block
1 sq.m. = 12.5 blocks
Price 62 THB
*Coolblock prices are subject to change based on raw material costs.
Coolblock Brick Website www.coolblock.co.thTesting report
Thermal Conductivity (K-value)
Department of Science Service
Fire Resistance
European Standard
Water Absorption
Department of Science Service
Sound Transmission Class (STC)
Chulalongkorn University
Compressive Strength
KMUTNB
| Physical Properties | Unit | Test Results | Testing Institute |
|---|---|---|---|
| Thermal Conductivity | W/m·K | 0.0829 | Department of Science Service |
| Thermal Resistance | m²·K/W | 0.8326 | Department of Science Service |
| Compressive Strength | kg/cm² | 21.71 | King Mongkut's University of Technology North Bangkok |
| Water Absorption | % | 9.30 | Department of Science Service |
| Airborne Sound Transmission Loss | STC | 34 | Chulalongkorn University |
Calculator
| Item | 407 | 409 | 40M | 40L |
|---|---|---|---|---|
| Price (THB)/Block | 28 | 35 | 52 | 62 |
| Price (Baht)/sq.m. | ~350 | ~438 | ~650 | ~775 |
| Brick Thickness (cm) | 7 | 9 | 15 | 19 |
| Weight (kg)/Block | 4.8 | 6.2 | 11.5 | 12.5 |
| Units/sq.m. (including mortar joints) | 12.5 | 12.5 | 12.5 | 12.5 |
| Units/pallet | 265 | 205 | 132 | 104 |
| sq.m./pallet | 21.2 | 16.4 | 10.56 | 8.32 |
| Masonry mortar 50 kg (1 bag) covers (sq.m.) Masonry mortar thickness 1–1.5 cm | 2.7 | 1.8 | 1.2 | 1.0 |
| Plaster mortar 50 kg (1 bag) covers (sq.m.) Plaster mortar thickness 1 cm | 2.4 | 2.4 | 2.4 | 2.4 |
| Masonry - Plaster Mortar | Standard | |||
*The quantity of masonry and plaster mortar is an estimate based on construction procedures; it may vary according to mortar thickness and workman technique. · Prices may vary according to raw material costs.
Installation Guide · Laying & Plastering
No special adhesive mortar needed, no retraining required

STEP 1
No need to soak before laying; simply moisten and clean the block ridges thoroughly. Wet columns, floors, and beams, then install dowel bars to secure the wall.

STEP 2
Use general ready-mix mortar or cement mixed with coarse/medium sand. Apply across full contact surfaces, staggering joints in every course.

STEP 3
Leave a 5–10 cm gap under the beam on the top course. Allow mortar to set for 1–2 days, then fill completely with masonry mortar or infill blocks.

STEP 4
Standard plastering mortar can be used. Apply thinly at 1–1.5 cm. For thicker coats, apply a first coat, leave for 1–2 days, then apply the finish coat.

Easy to use
Just like laying standard concrete blocks, no special skills or tools are needed, helping save construction costs.
e-catalog
Fill in Contact Details to Download Coolblock Catalog (PDF)

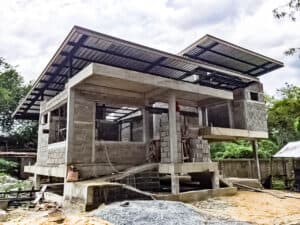

Project Showcase
FAQ
Coolblock is made from Portland cement with a core of fire-retardant EPS insulation (thermal conductivity around 0.03 W/m·K). The entire block has a thermal conductivity of only 0.0829 W/m·K. Catalog data indicates it transfers 76% less heat than standard concrete blocks, is lighter than standard concrete blocks, and can be sawed, grooved, and nailed.
Brand catalog figures state it saves over 30% on air-conditioning energy because the brick has a low thermal conductivity of 0.0829 W/m·K, blocking heat from entering the building and cooling rooms faster when the AC is turned on.
Standard masonry and plaster mortar can be used—no special mortar or special skills/methods required.
Because it features an EPS thermal insulation core between layers of Portland cement, acting as dual-layer thermal retardation to prevent heat accumulation in the home, with the entire brick having a thermal conductivity of just 0.0829 W/m·K (tested according to ASTM C 518-17).
It is suitable for residential homes, commercial buildings, and factories, ideal for construction in hot climate zones. Project references on this page include detached houses, housing developments, minimarts, and warehouses.
